A production line for intermittently bonded ribbon is designed to produce flexible fiber groups for contemporary, high-count cable architectures. It maintains organized fiber alignment for expedited mass fusion splicing, yet allows the fiber group to remain flexible within a compact cable core.
Compared with continuously bonded ribbons, intermittent bonded ribbons feature small bond points at predetermined intervals. This strategic placement enables the fibers to maintain alignment while the ribbon can conform to circular loose tubes and other confined spaces.
Network designers use this approach when faced with constraints in duct space, splice closures, and equipment racks. A carefully manufactured ribbon cable facilitates dense network deployments in data centers, telecom backbones, metro networks, FTTx feeder systems, and 5G transport networks.

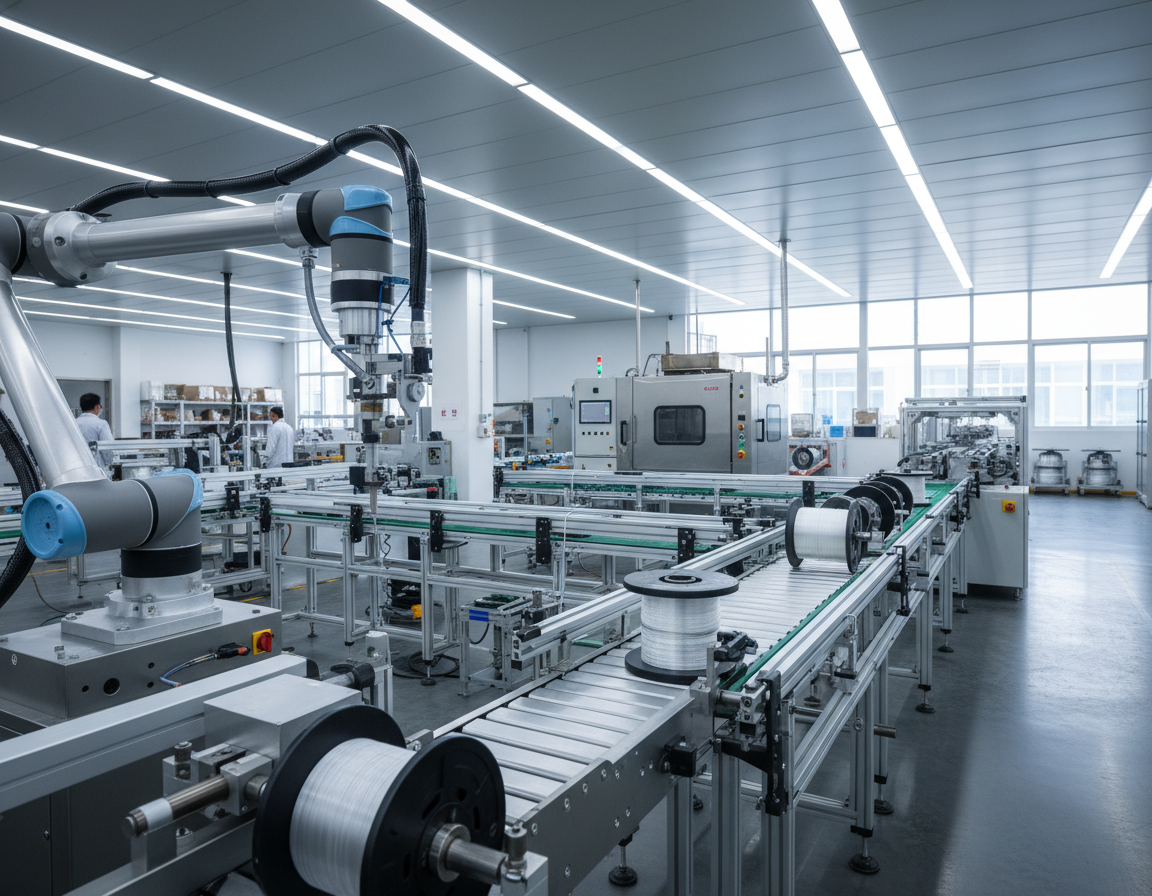

Intermittent Bonded Ribbon Fiber Secondary Coating Line SZ Stranding Line
Main Takeaways
- A bonded ribbon production system supports compact and flexible fiber layouts.
- Discrete bond points keep optical fibers organized without making the ribbon stiff.
- Flexible ribbons support higher fiber counts within small circular cable constructions.
- Stable fiber order helps accelerate mass fusion splicing.
- Ribbon cable technology serves data centers, telecom routes, and fiber access networks.
Intermittently Bonded Ribbon Production Line Overview
Intermittently bonded ribbon manufacturing allows the creation of fiber designs that balance compactness with usability. This method involves applying bond points at controlled intervals, allowing for the movement of fiber subunits between these points.
This production approach supports the incorporation of a higher number of fibers within constrained duct spaces. It also helps maintain the organized ribbon structure, essential for efficient splicing and cable assembly processes.
How Does An Intermittently Bonded Optical Fiber Ribbon Work?
An intermittent bonded fiber ribbon connects adjacent fibers at specific intervals along its length. The segments between these bonds remain relatively free, enabling the ribbon to adopt various configurations without rigidification.
The design is frequently known as a rollable, flexible, or spider web ribbon. It differs from the conventional flat ribbon cable, which maintains a fixed profile along its entire length.
During splicing, the fibers can be arranged into a flat ribbon for mass fusion operations. In cable production, the same fibers create space-efficient bundles, optimizing space utilization within the cable.
Why Flexible Ribbon Technology Matters For High-Density Fiber Networks
Network architects face the challenge of increasing capacity within densely populated conduits, data centers, and access routes. The flexible nature of a flat cable structure allows ribbon groups to fit into smaller cable cores, preserving fiber order.
Fiber density ratio represents a critical metric for network builders, comparing the space occupied by fibers to the total cable area. Intermittent bonding enhances this ratio, allowing ribbon groups to occupy available spaces within the cable.
For network installers, high-density fiber cables reduce the number of cables required for a given route. This design also supports high fiber counts without necessitating a rigid ribbon stack.
Intermittent Bonded Ribbon Production Line
| Ribbon Feature | Intermittently Bonded Ribbon Design | Traditional Continuous Ribbon |
|---|---|---|
| Bond arrangement | Individual bond points at controlled spacing | Continuous bonds along the ribbon length |
| Fiber configuration between bond points | Can bend, roll, or fold for dense packing | Remains predominantly flat and planar |
| Splicing position | Can return to a flat format for mass fusion splicing | Already held in a fixed flat ribbon form |
| Role in cable packing | Enables dense placement of flexible fiber subunits | Relies on a relatively rigid ribbon stack |
| Common cable application | Compact high-density and flexible ribbon cable structures | Traditional flat ribbon cable designs |
Intermittent Bonded Ribbon Construction And Material Requirements
An intermittent bonded ribbon integrates precise fiber placement with adaptable bonding points. Its architecture facilitates dense cable configurations while allowing effortless separation during handling, routing, and splicing.
Choosing appropriate materials significantly influences ribbon width, peel characteristics, and durability. Each optical fiber subunit must hold its fibers securely without imparting undue stiffness to the ribbon.
Optical Fiber Counts And Subunit Arrangement
Flexible bonded ribbons may support 4, 8, 12, 24, or up to 36 fibers. The choice of fiber count is determined by cable capacity, available duct space, and the requirements of subsequent mass fusion splicing.
A 12-fiber configuration often employs six subunits, with two adjacent fibers in each subunit. The fibers within a subunit may be in contact or separated by no more than one and a half times the fiber diameter.
Controlled gaps introduced between subunits ensures ribbon flexibility. These gaps typically span from 5 to 100 micrometers, while the fibers remain aligned side by side across the ribbon width.
| Construction Element | Typical Configuration | Production Purpose |
|---|---|---|
| Fiber count | 4, 8, 12, 24, or as many as 36 fibers | Matches cable density and splice capacity |
| Subunit configuration | Two neighboring fibers in each optical fiber subunit | Allows controlled separation between fiber groups |
| Spacing within each subunit | Touching or up to 1.5 fiber diameters | Keeps the subunit profile compact and stable |
| Spacing between subunits | 5 to 100 micrometers | Allows greater movement and flexibility near bond points |
Wet-On-Wet Bonding And UV-Curable Resin
Subunit coatings and bonding materials frequently employ UV-curable resin systems. Wet-on-wet bonding involves applying the bond material to the uncured subunit coating, which then cures together under UV energy.
This process creates a diffusion zone where the materials interact. For intermittent bonded ribbons, this zone can range from 2 to 50 micrometers, with 5 to 15 micrometers being the typical focused process range.
The UV-curable materials can combine at the interface before curing. This supports molecular interaction between the bond and the optical fiber subunit coating, resulting in bonds that are both secure and flexible.
Essential Equipment In An Intermittent Bonded Ribbon Production Line
A fiber ribbon line integrates advanced motion control with meticulous material handling. Each station helps fibers stay clean, aligned, and stable from the initial payoff to the final winding.
The equipment facilitates adjacent fiber placement, subunit coating, intermittent bonding, UV curing, cooling, inspection, and take-up. This sequential process enables manufacturers to produce flexible custom ribbon cable, preserving the integrity of the fiber order.
Fiber Payoff And Tension Control Equipment
Payoff units deliver individual optical fibers at a consistent rate from spools. Guides, rollers, and tension sensors prevent sudden pulls, averting twist, slack, or uneven spacing.
During ribbon production, maintaining balanced fiber paths before alignment is critical. Stable tension is essential for forming flat subunits and ensuring accurate color sequence control.
Coating Die With Discrete Bond Applicator
A coating die places a UV-curable material around groups of two or more fibers. This material defines subunits while maintaining fibers in a flat, parallel layout.
The discrete bond applicator subsequently deposits a second resin between neighboring subunits at planned intervals. This spacing allows the ribbon to flex and separate when needed, a critical aspect of custom ribbon cable design.
| Line Equipment | Main Function | Process Benefit |
|---|---|---|
| Fiber payoff and tension unit | Supplies fibers under controlled tension | Minimizes twisting and uneven fiber loading |
| Coating die | Forms coated fiber subunits | Keeps subunit dimensions and shape consistent |
| Intermittent bond applicator | Applies resin at controlled intervals | Provides controlled flexible bonds between subunits |
| UV curing and take-up unit | Cures and cools the ribbon before inspection and winding | Helps protect bond quality and organized fiber placement |
Ribbon Take-Up, Cooling, And UV Curing Equipment
UV lamps cure the subunit coating and intermittent bonds while the resin is wet. This wet-on-wet process forms a cohesive interface between materials, influencing bond strength.
Cooling systems reduce ribbon temperature before inspection and winding. The fiber ribbon line may also employ vision checks to monitor width, bond position, and surface quality.
Take-up equipment winds the finished ribbon with low, even tension. Proper winding safeguards the cured structure, ensuring the custom ribbon cable is ready for later cabling, splicing, or connector assembly.
Fiber Preparation, Alignment, And Color Control
A stable ribbon cable begins with fiber preparation. Each strand must enter the assembly clean, centered, and in the correct sequence before the coating and bonding processes commence.
Managing Fiber Identification During Splicing And Maintenance
A clearly defined fiber color sequence is indispensable for splicing, testing, and maintenance operations. The standard 12-fiber sequence, typically consisting of blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua, facilitates swift identification.
When fiber counts increase, the sequence may be repeated within controlled subunits. This method ensures that each ribbon cable remains organized within splice trays, closures, and cable connector layouts.
| Ribbon Fiber Position | Identification Color | Identification Purpose |
|---|---|---|
| 01 | Standard blue | Starts the standard fiber color sequence |
| 02 | Standard orange | Provides rapid visual identification |
| 03 | Standard green | Helps preserve the established fiber order |
| 04 | Brown | Supports confirmation of subunit position |
| 05 | Standard slate | Creates a clear mid-sequence identifier |
| 6 | White | Improves visibility during inspection |
| 7 | Red | Supports accurate splicing records |
| 08 | Black | Helps technicians recognize sequence position in trays |
| 09 | Standard yellow | Supports rapid identification during restoration work |
| 10 | Standard violet | Helps distinguish later positions in the standard sequence |
| Position 11 | Standard rose | Helps maintain clarity in higher-count ribbon layouts |
| Position 12 | Standard aqua | Marks the final position in the standard color order |
Preventing Fiber Twisting And Uneven Tension
Fiber guides and payoff units are important in maintaining fibers in a flat, side-by-side configuration. This prevents twist, crossing, and gaps that could alter the ribbon’s width or distort the bond pattern.
Operators meticulously monitor tension across every path before the fibers reach the coating die. Proper alignment is critical for mass fusion splicing and ensures the finished ribbon cable fits its intended cable connector system.
UV Curing And Intermittent Bond Application Process
The intermittent bonding process joins fiber subunits without solidifying the ribbon into a rigid form. This method allows dense routing and ensures dependable handling within a flexible flat cable. It also aids in maintaining the planned fiber layout during subsequent cable assembly.
Applying Intermittent Bonds At Predetermined Intervals
Equipment applies bonds at intervals ranging from 10 mm to 1,000 mm. The bond locations may stagger along the ribbon’s length. This arrangement provides support to adjacent subunits while allowing sufficient free length for movement.
The bond applicator delivers a measured amount of UV-curable resin at each bond point. Bonds often exhibit a diamond-like shape, with wider centers and narrower ends. The tapered ends help minimize localized stress changes when the cable bends or twists.
Building Strong Yet Flexible Bond Interfaces
The wet-on-wet method involves applying a second material before the first subunit coating cures. The uncured layers can blend before undergoing a shared UV curing step. This approach fosters a gradual interface, unlike a sharp material boundary.
The resulting gradient influences various properties, including color, Young’s modulus, and surface friction. Bond ends may feature saddle-like surfaces with both convex and concave curves. These features improve resistance to bond peeling while facilitating separation when required.
Controlling Curing Performance
UV curing systems must deliver consistent energy across the ribbon. Factors such as line speed, lamp output, resin volume, and exposure time impact the bond’s quality. Selecting the right UV-curable resin ensures rapid curing without compromising the fiber coating.
Operators closely monitor bond shape, cure level, and ribbon flexibility during production. The cured cable should transition smoothly from a flat plane to various forms without bond damage. Controlled curing ensures consistent handling throughout winding and downstream processing.
Quality Control For Fiber Ribbon And Flexible Flat Cable Output
Ensuring each flat ribbon cable’s integrity is a meticulous process. It involves checking the cable’s flexibility and its readiness for subsequent splicing operations. During production, operators assess the fiber count, color sequence, and precise positioning of each fiber. They also evaluate the cable’s winding condition, ensuring its optimal state for assembly.
Regular inspections are critical in identifying any defects in the coating, uneven tension, or misplaced bonds. These issues, if left unaddressed, could compromise the cable’s performance in subsequent stages of production.
Bond Spacing, Ribbon Width, And Thickness Inspection
Bond spacing remains a critical parameter, requiring adherence to a specific design range. This spacing is essential for the cable’s flexibility, ensuring that the fibers remain aligned within their designated subunits during bending.
Quality checks are performed to confirm that each bond correctly connects adjacent subunits. This attention to detail ensures that the ribbon lays flat, facilitating smooth mass fusion splicing processes.
| Inspection Point | Items Checked | Production Value |
|---|---|---|
| Fiber sequence identification | Fiber number, color order, and placement | Helps ensure accurate splicing and maintenance |
| Bonding pattern | Bond position, interval, and connection between subunits | Supports organized fibers without sacrificing flexibility |
| Ribbon profile | Dimensional width, thickness, and flatness | Ensures the ribbon works with downstream handling and splicing tools |
| Ribbon surface condition | UV cure state, coating coverage, and defects | Helps minimize handling damage during winding |
Optical And Mechanical Ribbon Testing
Mechanical assessments focus on bond separation, cohesive strength, elongation, and handling behavior. These evaluations are essential to confirm that the manufacturing process controls are consistent across similar designs of flat cables.
Optical testing includes evaluations after bonding and curing. It ensures that the core, cladding, primary coating, secondary coating, and color layer are adequately protected throughout the manufacturing process.
Optical attenuation checks and handling evaluations are integral to routine inspections. The quality of winding is also scrutinized to ensure that the finished flat ribbon cable is in a controlled condition for assembly.
Production Efficiency, Automation, And Precision Winding
High-efficiency ribbon production relies on a unified production line. Each stage, from fiber payoff to inspection and take-up, must harmonize seamlessly. This synchronization ensures the preservation of fiber geometry and facilitates consistent output, critical for high-speed data transmission cables.
Line Synchronization And Process Data Monitoring
Automated control systems synchronize payoff speed, fiber tension, resin delivery, bond placement, UV curing, cooling, and take-up. Adjustments are made in real time to maintain ribbon stability when speed variations occur at any station.
Manufacturing data records capture fiber color sequences, bond intervals, cure settings, ribbon dimensions, and winding status. This detailed history allows operators to track the production of each custom ribbon cable.
- Controlled payoff tension reduces fiber stretching and slack.
- Accurate bond timing keeps discrete joints evenly spaced.
- Dimensional checks detect width or thickness deviations promptly.
- Winding records support lot traceability and downstream handling.
Winding Ribbon For Downstream Cable Production
Precision winding equipment ensures the ribbon is wound onto a spool with uniform tension and controlled movement. This method prevents edge crushing, layer crossing, and sudden pulls during subsequent cable processing.
Finished ribbon units can be stacked, rolled, or loaded into central tube and loose tube designs. These configurations enable the creation of high-speed data transmission cables, even in areas where duct additions are impractical.
For custom ribbon cables, the winding pattern must align with subsequent processes. Proper spool buildup is essential for smooth payout during stranding, tube loading, and cable assembly.
| Process Area | Control Focus | Resulting Benefit |
|---|---|---|
| Fiber payoff | Consistent tension with correct fiber color order | Correct ribbon positioning in downstream cable construction |
| Bonding stage | Controlled bond intervals and resin quantity | Consistent flexible behavior in downstream operations |
| UV curing process | Regulated UV intensity and exposure duration | Reliable bond strength before winding |
| Cable winding system | Even traverse, spool tension, and layer control | Smooth payout for central tube or loose tube loading |
Applications, Splicing, And Connector Planning For Ribbon Cable
Ribbon fiber is widely used in dense links within data centers, telecom backbones, metro rings, and FTTx feeder routes. It also excels in indoor FTTH runs, 5G fronthaul, and outdoor point-to-point networks where space is at a premium.
A properly planned ribbon cable system enables crews to manage high fiber counts efficiently, without increasing bulk. Each high-speed data transmission cable must align with the site’s route, enclosure space, and future expansion plans.
Benefits Of Mass Fusion Splicing
A ribbon fusion splicer allows the joining of an entire ribbon in a single operation. For a 12-fiber ribbon, a matching cleaver can prepare all 12 fibers simultaneously before the automated fusion process commences.
This method reduces handling time and ensures consistent fiber alignment. Splice loss is reported to remain below 0.05 to 0.10 dB per fiber, contingent upon controlled preparation, cleaning, and machine settings.
In contrast, loose tube cable necessitates a different strategy at the splice cassette. Technicians must separate the fibers, then splice them individually, which prolongs the ribbon cable assembly process.
Connection Planning For Dense Links
High-density fiber links often employ MPO or MTP trunks, harnesses, fanout cables, and cassette modules. The chosen cable connector must align with the fiber count, polarity method, connector gender, and fiber type.
System planning must also account for transceiver requirements and the full link loss budget. A high-speed data transmission cable, when used with parallel optics, demands a clear polarity path from equipment port to patch panel.
| Network Planning Item | What It Controls | Common Application |
|---|---|---|
| Number of ribbon fibers | Required splice capacity and cassette configuration | Backbone links using 12-fiber or 24-fiber ribbons |
| MPO or MTP cable connector | Polarity management and equipment port compatibility | Data center trunks and 5G equipment rooms |
| Fanout or harness cable | Transition from multi-fiber connections to single-fiber ports | Switch ports and high-density patching areas |
| Link loss budget | Allowed loss from splices, connectors, and fiber length | High-speed fiber cable network paths |
Shanghai Weiye OFC Equipment For Ribbon Line Projects
Shanghai Weiye OFC Equipment, also known as SHWY, specializes in machinery for the production of optical fibers and cables, serving markets in the United States and globally. Its offerings are designed to maintain stable production, facilitate clear operator control, and enable seamless integration into production lines.
For manufacturers planning an intermittent bonded ribbon production line, SHWY supports every stage of ribbon handling, curing, and winding with suitable machinery.
SHWY Optical Fiber And Cable Machinery Experience
Founded in 1998, SHWY’s journey in the industry has been marked by significant milestones. By 2012, its annual turnover surpassed 200 million CNY, strengthening its position within a prominent Chinese fiber and cable conglomerate as a joint venture.
During 2020, SHWY moved to independent operation, relocating to a state-of-the-art facility in central Shanghai. This move underscored its commitment to advancing equipment research, manufacturing, and process application while supporting operational stability.
SHWY Production Equipment Portfolio
The SHWY equipment portfolio includes a diverse range of equipment, including fiber draw towers, coloring machines, secondary coating lines, SZ stranding equipment, and cable sheathing lines. Notably, it also features a fiber ribbon line tailored for flat, high-count fiber formats.
Within ribbon cable production, a cable precision winder plays a critical role in maintaining orderly package buildup and controlled tension. This ensures safer transport and more consistent feeding into subsequent cable production stages.
The broader SHWY portfolio also includes FTTH lines, indoor cable equipment, and OPGW fiber-in-stainless-steel-tube systems. These options enable manufacturers to integrate an intermittent bonded ribbon production line with complementary cable processes.
Final Thoughts
An intermittent bonded ribbon production line integrates fiber alignment, controlled bonding, UV curing, inspection, and precision winding into a unified process. Each step ensures the preservation of fiber order while maintaining the necessary bendability for dense cable designs. This combination is critical for the creation of high-density optical networks.
The finished ribbon cable enables efficient mass fusion splicing and organized fiber management. It is ideal for applications with high fiber counts, confined ducts, limited tray space, and frequent splice points. This makes it a cornerstone in many high-density ribbon cable routes.
Effective project planning extends beyond the production line. It encompasses the cable structure, closure capacity, fusion tools, test methodologies, labeling, and restoration records. These elements must align with the planned network architecture for seamless integration.
